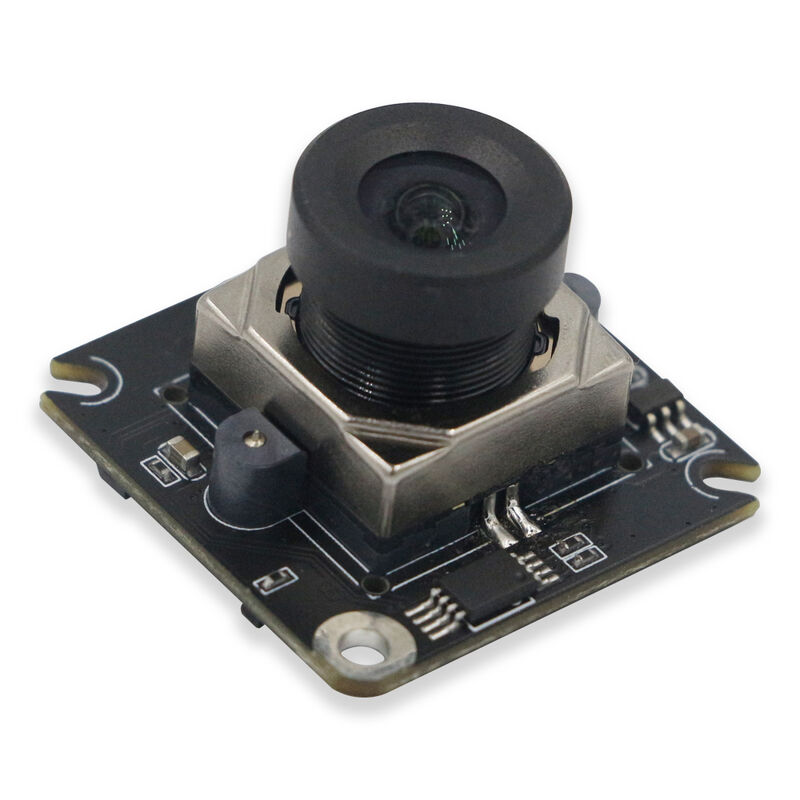

Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone

Name: Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Brand: Shenzhen City Haozhou Technology Co., Ltd.
SKU: HZ-IMX377 AF1.0
Price: 35.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	HAOZHOU/OEM
Certification:	CE / RoHS / FCC / ISO
Model Number:	HZ-IMX377 AF1.0

Detail Information

Place of Origin:

Shenzhen,China

Brand Name:

HAOZHOU/OEM

Certification:

CE / RoHS / FCC / ISO

Model Number:

HZ-IMX377 AF1.0

Describe:

HD USB Camera Module

Installation Type:

USB Plug And Play

Warranty:

3 Years

FOV:

(Customizable）

Focus:

Auto Focus / Fixed Focus（OEM)

Style:

Mini Camera Module

Pixel Size:

1.12µm X 1.12µm

Pixel:

16 Mega Pixel

Function:

High Sensitivity, Low Dark Current

Special Features:

HDR, High Speed, Low Light

Trading Information

Minimum Order Quantity:

Price:

25~45USD

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

7 - 15 Work Days

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Paypay and others

Supply Ability:

500000 pieces/month

Product Description

Factory Custom Autofocus USB Camera Module Computer IMX298 16MP CMOS USB Camera for UVC Video Camera Industrial Robot Vision

Product Description

Auto Focus USB Camera Module

This specialized HDR camera module meets demanding requirements of aerial photography with 16MP resolution and enhanced dynamic range. The RGBW technology ensures optimal performance in challenging lighting.

This is a high resolution, high sensitivity and high technology USB2.0 camera module, it is 16MP resolution with SONY IMX298 CMOS sensor, image quality is very high and excellent; Also, it is Auto Focus with focus range from 0-1023

IMX298 4K Camera Module Functions and Features

ensor: SONY IMX298 CMOS

Resolution: 16MP (4608×3456)

Pixel Structure: RGBW array

Dynamic Range: Enhanced HDR

Operating Temp: 0°C to 60°C

FOV: 70° customizable

CMOS Camera Module USB Applications

Drone cameras, UAV imaging systems, aerial mapping, and professional photography drones.etc.

Specifications:12MP HD Camera Module

Module No.	HZ-IMX298 S1.0
Module Size	38mm × 38mm (Support customization)
Object distance	1cm-∞
Focus	Auto Focus
Chroma	Color, RGB
Interface	USB2.0
Protocol & Connection	Plug-&-Play (UVC compliant)
Voltage	DC5V
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Operating system request	Windows XP/7/8/10, Linux (supports UVC protocol) Android (supports UVC protocol), MAC-ios
Adjustable Parameters	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Auto Exposure Control (AEC)	Supported
Auto White Balance (AEB)	Supported
Auto Gain Control (AGC)	Supported
Package	Anti-electrostatic tray
Sensor Type
Sensor No.	IMX298
Sercor Type	1/2.8Inch
Active Array Size	4656(H)*3496(V)
Pixel	16 Mega Pixel
Compression format	MJPEG / YUY2
Pixel Size	1.12µm x 1.12µm
Shutter Type	Electronic rolling shutter
Dynamic Range	TBD
