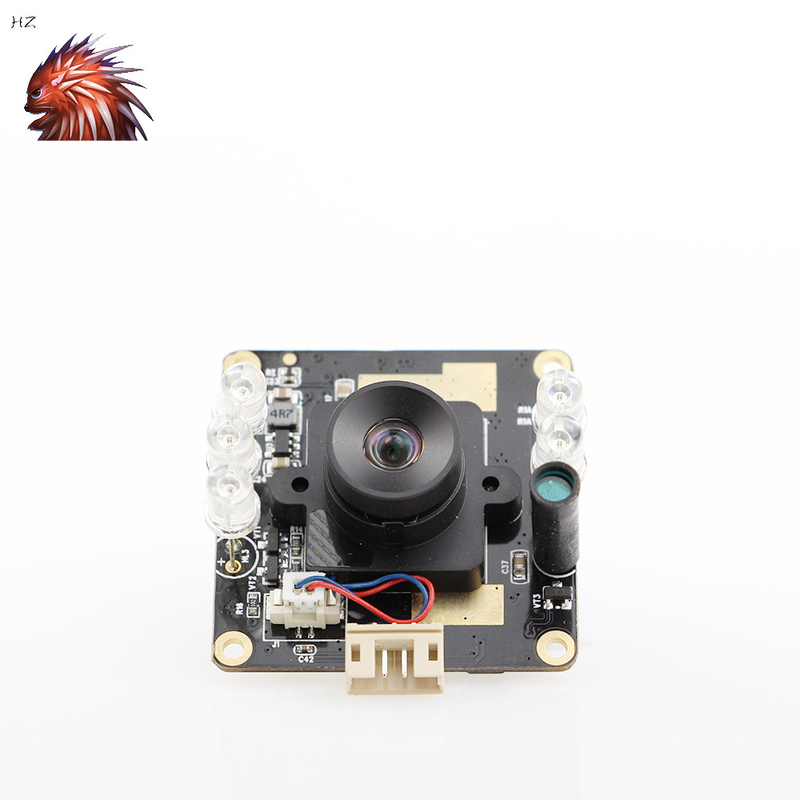

OEM 2MP OV2710 1080P HD Infrared Night Vision Camera Module FF 160 Degree Wide Angle USB IR-CUT Camera Module with Microphone
Product Description
Wide Angle lens Camera Module
- The OV2710 is a true Full HD (1080p) CMOS image sensor designed to deliver high-end HD video for mobile applications. The 1/2.7-inch OV2710 USB camera module addresses the rapidly growing need for affordable, high-definition digital video solutions for video conferencing and recording. The OV2710-1E allows system designers to use the same optoelectronic design across different products and multiple market segments, significantly reducing product development time.
Infrared Night Vision camera Module
- The OV2710 is one of the first Full HD (1080p) sensors on the market, meaning it is capable of delivering HD video formats at a display resolution of 1920 x 1080 pixels and running at 30 frames per second. The OV2710 HD infrared night vision camera module features OMNIVISION’s proprietary 3 µm OmniPixel®3-HS high-sensitivity pixel technology, enabling the camera to operate in nearly all lighting conditions, from bright daylight to near total darkness below 15 lux.
OV2710 2MP HD Camera Module Functions and Features
1)Equipped with 5 LED lights and 850nm IR CUT filter for day/night vision
2)2 million pixels, equipped with Omnivision OV2710 CMOS sensor
3)Supports 30FPS frame rate at 1920x1080 resolution
4)Low illumination and low light sensitivity of 3700 mV/lux-sec
5)Compliant with UVC standard, plug and play
6)Support Linux, Android, Mac and Windows
7)Lens has a wide field of view, from 20° to 200°
8)Module size is 38MMx38MM, customizable
9)USB interface, UVC protocol, driver-free, plug and play
CMOS Camera Module Applications
Smartphones, laptops, smart home devices, security monitoring, machine vision, industrial inspection, vehicle cameras, medical equipment, robot vision, drone cameras, sports cameras, VR/AR devices, etc.
Specifications:OV2710 HD Infrared Night Vision Camera
|
Module No.
|
HZ-OV2710 S1.0
|
|
Module Size
|
38mm *38mm
|
|
Object distance
|
20CM-∞
|
|
Resolution
|
800LW/PH (Center)
|
|
Image color
|
normal Image+night viewing
|
|
LED
|
850nm
|
|
working Voltage
|
5V
|
|
working current
|
Max 500mA
|
|
Temperature (Operation)
|
-30°C to 70°C
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
Operating system request
|
Windows 2000 ,Windows XP/ 7 / 8 /10 /Linux or OS with UVC Driver
|
|
Package
|
Anti-electrostatic tray
|
|
Sensor Type
|
|
|
Sensor No
|
OV2710
|
|
Sensor Type
|
1/2.7”
|
|
Active Array Size
|
1920*1080
|
|
Sensitivity
|
3700mV/(Lux·sec)
|
|
Pixel Size
|
3μm x 3μm
|
|
Maximum Image Transfer Rate
|
1080P@30fps,720p@60fps
|
|
Dynamic Range
|
69DB
|
|
LENS
|
|
Lens Type
|
5G
|
|
Mount
|
M12*p0.5mm
|
|
DSP Type
|
|
GC/EC/Whiter balance
|
Auto
|
|
Interface
|
USB 2.0
|
|
Output Formats
|
YUY2/MJPG
|
|
Application
|
|
Application
|
Face Recognition,AR, AI,VR, Robot
|
