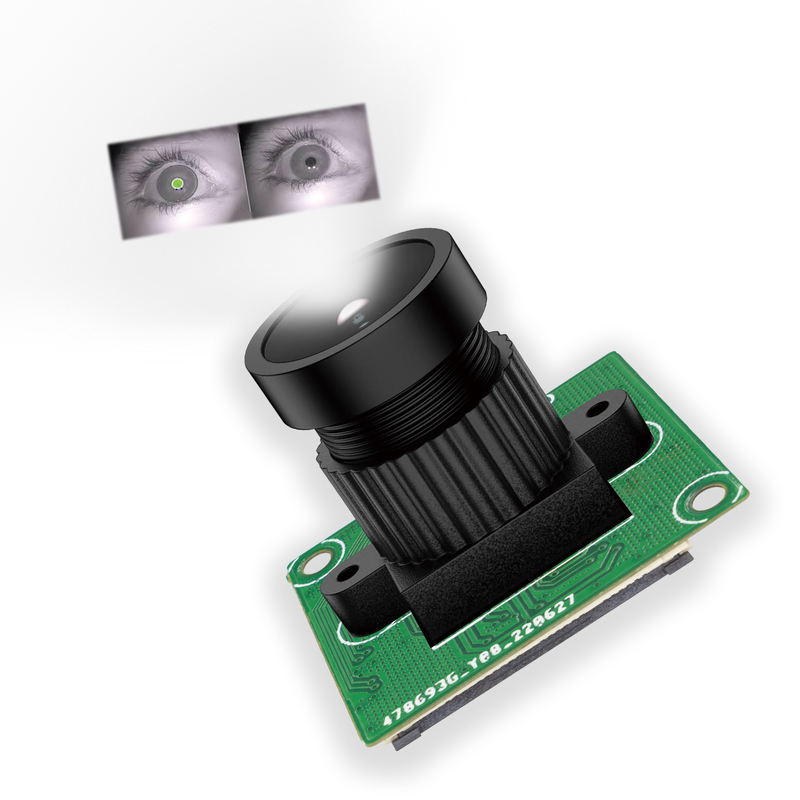

OV9281 120FPS 1/4 inch B&W 1 Megapixel 1280x800 CMOS Image Sensor Camera Module 720P MIPI DVP AR VR Global Shutter Camera Module
Product Description
HD MIPI DVP Camera Module
- OMNIVISION’s OV9281 is a high-speed global shutter image sensor that provides 1-megapixel resolution for a wide range of consumer and industrial computer vision applications, including augmented reality (AR), virtual reality (VR), drone collision avoidance, barcode scanning, and factory automation.
Global Shutter Camera Module
- Built on OMNIVISION’s OmniPixel® 3-GS pixel technology, the OV9281 features high-speed global shutter pixels and best-in-class near-infrared (NIR) quantum efficiency (QE) to meet high-resolution and low-latency requirements.
high-speed Camera Module
- The 1/4-inch OV9281 is capable of capturing images at 1280 x 800 resolution at 120 frames per second (fps) and VGA resolution at 180 fps, with support for dual-channel MIPI and DVP outputs. The OV9281 also supports frame synchronization and dynamic defective pixel correction.
OV9281 120FPS High Speed Camera Functions and Features
■3 micron x 3 micron pixels with 0mniPixel3-GS technology
■Automatic Black Level Calibration (ABLC)
■Programmable control:
-Frame rate
-Mirror and flip
-Crop
-Windowing
■Supports 2:1 and 4:1 monochrome subsampling for horizontal and vertical
■Supported image sizes:
-I∠8U x 8UU
-1280x720
-640x480
-640x400
■Supported output formats: 8/10-bit RAW
■Fast mode switching
■Supports 2x2 monochrome merging
■Dual-channel MIPI serial output interface
■Embedded 256-bit one-time programmable (OTP) memory for component identification
■Two on-chip phase-locked loops (PLLS)
■LED PWM
■Built-in strobe control
■DVP parallel output interface
MIPI CMOS Camera Module Applications
Augmented Reality (AR), Virtual Reality (VR), Smartphones, Tablets, Drones, Robotics, Artificial Intelligence, Sports, Industrial Inspection, Machine Vision, Computer Vision, Industrial Automation, Vision Systems, Surveillance and Security, Imaging, Automotive Electronics, Object Tracking, Agriculture, Barcode Scanning and Biometrics, etc.
Specifications:120FPS Global Shutter Camera Module
|
Module No.
|
HZ-2522-9281 S1.0
|
|
Module Size
|
32mm × 32mm(OEM)
|
|
Object distance
|
10cm-∞ (Choose according to your needs)
|
|
Interface
|
MIPI / DVP
|
|
scan mode
|
progressive
|
|
Voltage
|
5v
|
|
Temperature (Operation)
|
-30°C to 85°C
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
Operating system request
|
Windows 2000 ,Windows XP/ 7 / 8
|
|
Package
|
Anti-electrostatic tray
|
|
Sensor Type
|
|
|
Sensor No.
|
OV9281 / OV9282
|
|
Sercor Type
|
1/4''
|
|
color
|
black and white
|
|
Active Array Size
|
1296*816
|
|
Sensitivity
|
13000 mV/uW.cm-².sec) @ 850 nm
6500 mV/uW.cm-².sec) @ 940 nm
|
|
Pixel Size
|
3µm x 3µm
|
|
max S/N ratio
|
38db
|
|
Dynamic Range
|
68db
|
|
LENS
|
Choose according to your needs
|
|
DSP Type
|
|
GC/EC/Whiter balance
|
Auto
|
|
Output Formats
|
8/10-bit RAW
|
|
Certifications
|
FCC and CE
|
|
Application
|
Consumer HMD, AR, VR, Industrial computer vision, iris recognition, bar code scanning, factory automation, Drones, Machine Vision,
