ESP32 Camera Module 2MP OV2640 Smart Home Vision

DVP Camera Module
December 24, 2025
Category Connection: DVP Camera Module
Chat Now Contact Us
Tags:
#OV5640 Camera Module #MIPI Camera Module #OV2640 Camera Module
Brief: Watch as we walk through the full process, from initial setup to real-world testing of the OEM ESP32 DVP Camera Module. This video demonstrates how the 2MP OV2640 sensor with MIPI DVP interface integrates for smart home and IoT applications, showcasing its automatic image controls, low power operation, and compatibility with microcontrollers like STM32 and ESP32.
Related Product Features:
  • Features a 2MP OV2640 CMOS sensor delivering UXGA resolution at up to 30fps for clear image capture.
  • Equipped with a 24-pin DVP interface for easy integration with STM32, ESP32, and other low-end microcontrollers.
  • Includes automatic image controls like exposure, gain, white balance, and lens correction for optimal picture quality.
  • Supports multiple output formats including RAW RGB, RGB, YUV, and YCbCr for versatile application use.
  • On-chip hardware JPEG encoder reduces microcontroller processing load and memory usage.
  • Compact module size of 50x12.5x5.35mm with wide 72-degree field of view suitable for space-constrained designs.
  • Low power consumption and high sensitivity enable reliable performance in low-light conditions.
  • Ideal for smart home devices, IoT applications, drones, industrial inspection, and educational kits.
FAQs:
  • What microcontrollers is this camera module compatible with?
    The OV2640 camera module features a DVP interface that is compatible with most low-end ARM and RISC microcontrollers, including STM32, ESP32, and ESP8266, making it versatile for various embedded projects.
  • What image output formats does the OV2640 sensor support?
    This camera module supports multiple output formats such as RAW RGB, RGB, GRB422, YUV, and YCbCr, providing flexibility for different image processing requirements in applications like smart home vision and IoT devices.
  • How does the on-chip ISP benefit the camera's performance?
    The on-chip Image Signal Processor (ISP) handles automatic exposure control, automatic white balance, and other image quality functions, which offloads processing from the main microcontroller and ensures consistent, high-quality images with minimal power consumption.
Related Videos

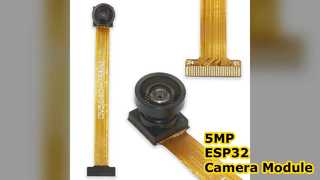

ESP32 5MP OV5640 Camera Module HD Face Recognition 00:12

ESP32 5MP OV5640 Camera Module HD Face Recognition
DVP Camera Module
December 24, 2025

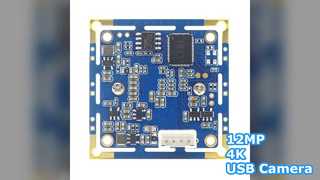

12MP 4K USB Camera Module Face Recognition 00:12

12MP 4K USB Camera Module Face Recognition
USB Camera Module
December 24, 2025

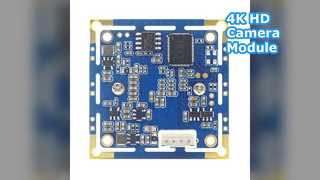

12MP 4K USB Camera Module Face Recognition 00:12

12MP 4K USB Camera Module Face Recognition
USB Camera Module
December 24, 2025

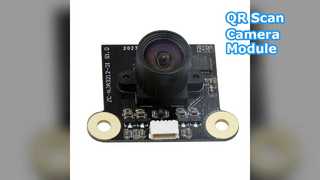

0.3MP USB Camera Module QR Scan VGA CMOS GC0309 00:12

0.3MP USB Camera Module QR Scan VGA CMOS GC0309
USB Camera Module
December 24, 2025
13MP OV13850 Camera Module 80 Wide Angle MIPI 00:12

13MP OV13850 Camera Module 80 Wide Angle MIPI
MIPI Camera Module
December 24, 2025
OV9734 720p HD Mini Camera Module 00:12

OV9734 720p HD Mini Camera Module
MIPI Camera Module
December 24, 2025

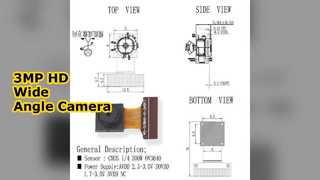

3MP OV3640 HD Camera Module 1080P MIPI Wide Angle 00:12

3MP OV3640 HD Camera Module 1080P MIPI Wide Angle
MIPI Camera Module
December 24, 2025

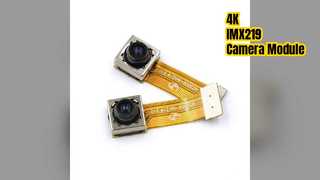

4K IMX219 MIPI CSI Camera Module 8MP HD Drone 00:12

4K IMX219 MIPI CSI Camera Module 8MP HD Drone
MIPI Camera Module
December 24, 2025

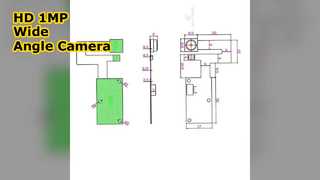

HD 1MP OV9712 USB Camera Module 720P Wide Angle 00:12

HD 1MP OV9712 USB Camera Module 720P Wide Angle
USB Camera Module
December 24, 2025

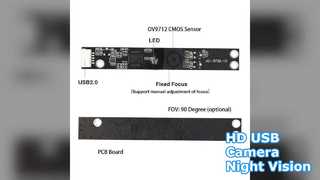

720p HD USB Camera Module Night Vision 00:12
