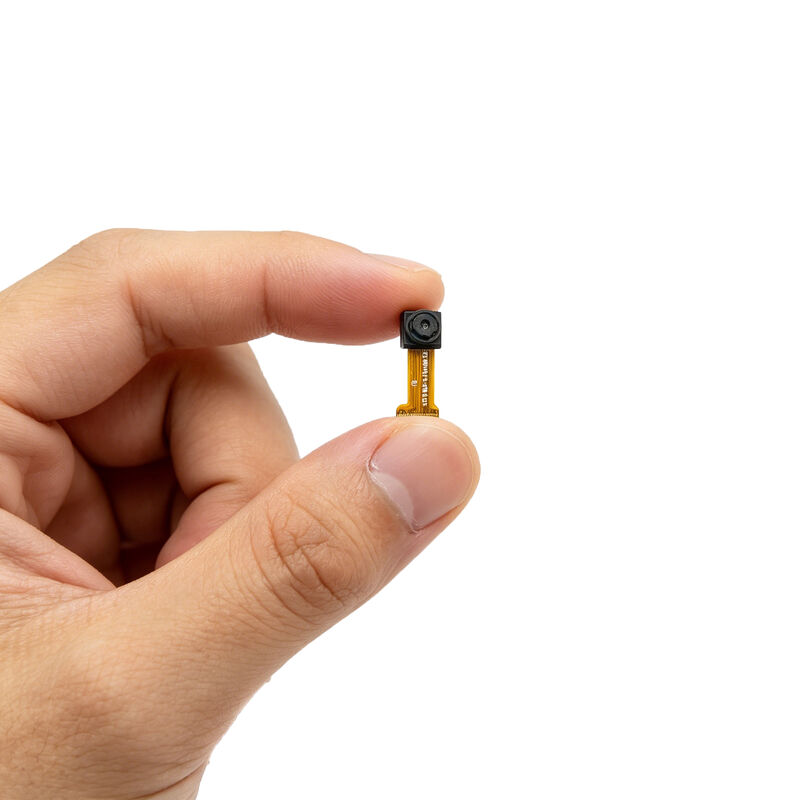

Low-power OmniVision OV2650 2MP MIPI Camera Module For Toy

Low-power OmniVision OV2650 2MP MIPI Camera Module For Toy

Product Details:
Place of Origin: Shenzhen, China
Brand Name: HAOZHOU / OEM
Certification: CE / RoHS / FCC / ISO
Model Number: HZ-OV2650 S1.0
Detail Information
Place of Origin:
Shenzhen, China
Brand Name:
HAOZHOU / OEM
Certification:
CE / RoHS / FCC / ISO
Model Number:
HZ-OV2650 S1.0
Description:
Wide-angle Camera Module
FOV:
65°-120 Degrees (Optional)
Pixel:
2-megapixel
Warranty:
3 Years
Network:
TCP
Sercor Type:
1/5”
Special Features:
NIGHT VISION
Focus:
Fixed Focus(Customizable)
Video Compression:
MJPEG/YUV2 (YUYV)
Series:
Mini Camera/low Light Camera/industrial Camera
Trading Information
Minimum Order Quantity:
1
Price:
4~10USD
Packaging Details:
Tray+Anti-static bag in carton box
Delivery Time:
7 - 15 Work Days
Payment Terms:
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability:
500000 pieces/month
Product Description

Customize OV2650 2MP Mini HD Cmos Image Sensor Camera Module Mipi Interface Wide Angle Smartphone Camera Module 1080P


Product Description

OV2650 MIPI Camera Module

  • The OV2650 combines OmniVision's proprietary 1.75-micron OmniPixel3 technology with advancedimage signal processing (ISP) to offer best-in-class low-light performance (520mV/lux-sec), superb colorreproduction and ultra-low noise. In addition, the OV2650 offers other advanced features: anti-shaketechnology for easier picture taking: high dynamic range (HDR) for advanced video functionality (85dB);a high-speed mobile industry processor interface (MIPl) to ease picture sharing; and a high-end ISP todeliver DSC-like performance.

Mini CMOS Camera Module

  • The OV2650's HDR capability enables the sensor to handle extreme variations of bright and darkconditions within the same scene and, similar to the human eye, adjust to changes rapidly. This isespecially useful when a camera phone is operating in video mode.


OV2650 Camera Functions and Features

  • Effective array size:1600×1200
  • Power supply:kernel 1.5 Volt DC ±5%,simulation 2.45~3.0 Fu,Input output 1.7~3.0 Fu
  • Power consumption requirements:working condition 250 Milliwatt,position in readiness 45 Microampere
  • temperature range :working temperature - 20℃to 70℃,Image stabilization temperature 0℃to 50℃
  • Output Format(8 position):Brightness and chromaticity 422/420,Brightness, color difference, blue and red 422,Red Green Blue 565/555,8/10 Original red, green, and blue data
  • Lens size:1/5 inch
  • Lens main light angle:25° Nonlinear(See table 10-1)
  • Input clock frequency:6~27 Megahertz,54 Megahertz
  • Signal-to-noise ratio:38 Decibel
  • dynamic range :65 Decibel

CMOS Camera Module Applications

mobile phone,Toys,Personal computer multimedia device,Digital still camera etc.


Specifications:Mini Smartphone Camera Module

Module No.
HZ-OV2650 S1.0
Interface
MIPI DVP
Temperature (Operation)
-20°C to 70°C
Temperature (Stable Image)
0°C to 50°C
Operating system request
WIFIBOX, WinXP, VISTA, Win7, Win8, Win10, Linux, Android4.4
Package
Anti-electrostatic tray
Sensor Type
 Omnivision
Sensor No.
OV2650
Active Array Size
1600×1200
Pixel Size
1.75μm x 1.75μm
Maximum Image Transfer Rate
1600×1200@15fps, 800*600@30fps
Dynamic Range
65dB
Signal to Noise Ratio
38dB
Shutter
Rolling Shutter
Certifications
FCC and CE
