| Place of Origin: | Shenzhen,China |
| Brand Name: | HAOZHOU / OEM |
| Certification: | CE / RoHS / FCC / ISO |
| Model Number: | HZ30-IMX577-S1.0 |

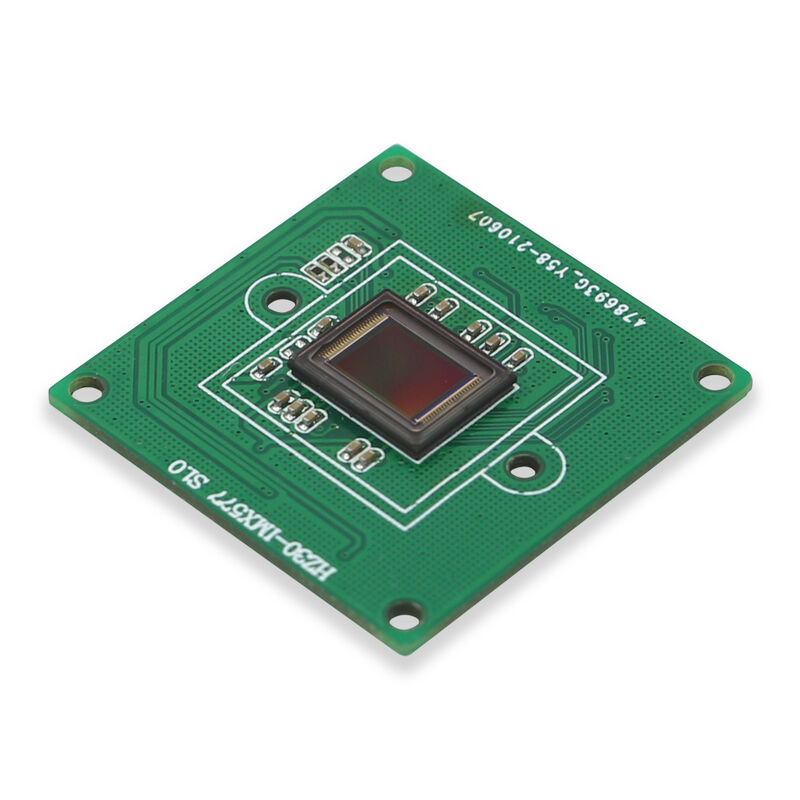

Sony IMX577 1/2.3" 12.3-Megapixel CMOS Camera Module with 4K MIPI CSI Interface Camera
Product Description
IMX577 12MP MIPI Camera Module
IMX577 RGB Mipi Camera Module Functions and Features
M12 No Distortion Lens: Sharp, undistorted visuals.
12MP CMOS Sensor: High resolution imaging for clear video.
MIPI Camera Sensor: Fast data transfer and compatibility.
12MP Sensor: Reliable performance for webcams.
IMX577 Camera Module: Advanced sensor for professional use.
CMOS Camera Module Applications
This camera module is widely used for high-tech and high-demanding applications like security, robotics, artificial intelligence(AI), machine vision, computer vison, IoT, surveillance, educational equipment, medical imaging, embedded devices, industrial automation, traffic monitoring system, agritech, video meeting, etc
Specifications:5MP FUII HD Camera Module
| Feature | Specification |
|---|---|
| Sensor Model | IMX577 |
| Pixel | 12 Mega Pixel |
| Pixel Size | 1.55μm × 1.55μm |
| Most effective pixels | 4000(H) x 3000(V) |
|
Focus type |
Fixed Focus/ Manually Adjustable |
|
Interface |
MIPI |
|
Operating Temperature |
-20°C to +75°C |
|
Dimension |
38MM x 38MM |
